600 HP AC Reliance Electric Motor, 1779 RPM, from Ingersoll Rand XFE 500 2S

No longer available

600 HP AC Reliance Electric Motor, 1779 RPM, from Ingersoll Rand XFE 500 2S

$13,848 (USD)

Location:Waupaca, WI

Description

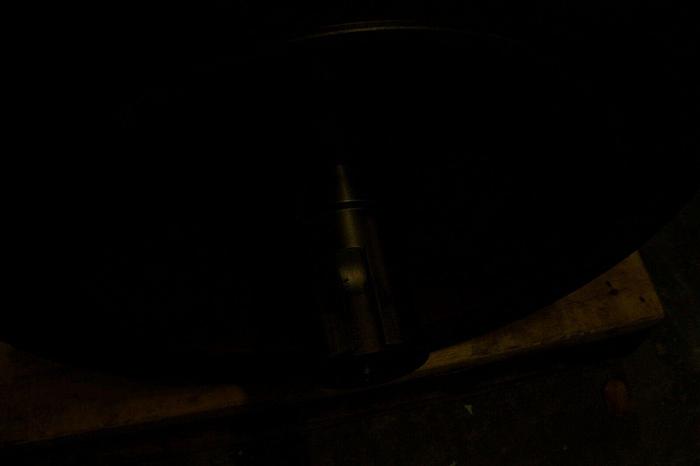

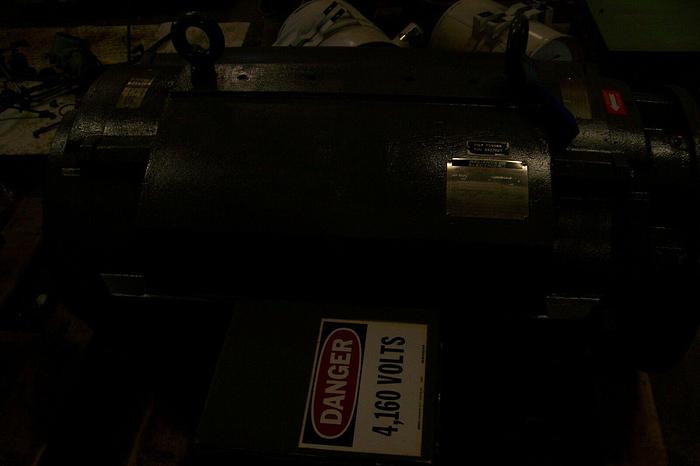

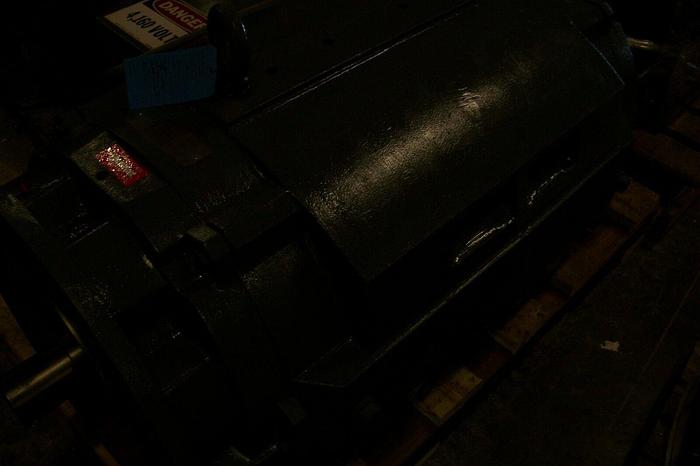

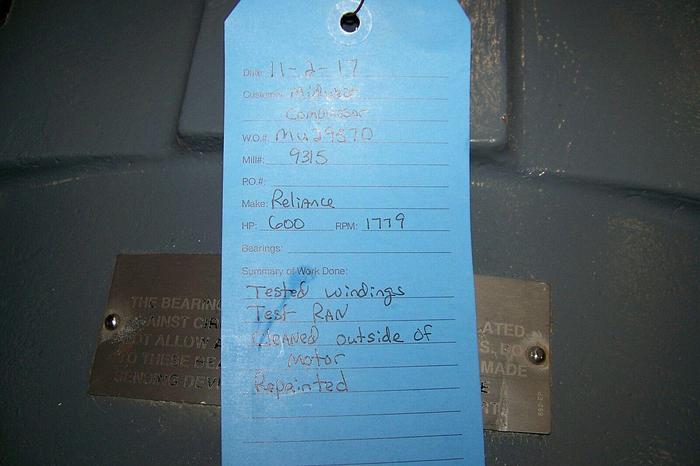

We are A full service air center, specialize in rebuilding complete units and air ends. We have fully stocked service trucks since 1982 Pictures are of A motor removed from an Ingersoll Rand SSR XFE 500 2S air compressor, we have two of these available We remove from running machine with 16,000 hours on them, Sent to motor shop to have checked out, tested out good Clean and paint look and perform as it should "Providing outstanding quality air compressors since 1982" Full load tested under power Many compressor and dryers in stock Thank You Midwest Air Compressor LLC. Waupaca, WI. Wayne McKay

Specifications

ManufacturerReliance
ModelVAQ33083-A4-LB
ConditionRefurbished
Quanitity1.0
Iec frame size19EB 5010DZ
Insulation classF
Ac phaseThree Phase
Actual rated input voltage4160
Shaft typeKeyed
Ac frequency rating60 Hz
Service factor1.15
Base rpm1750
Current typeAC
Nominal rated input voltage4160
Nema design letterCode G
Rated load (hp)600
Enclosure typePROT
Mounting typeFoot-Mounted
Full load amps77.3
MpnVAQ33083-A4-LB
